/ Adeunis sensors / TEMP: Temperature

TEMP: Temperature

TEMP: Temperature

LoRaWAN / Sigfox sensor

Record temperatures: measure, track changes and alert if thresholds are exceeded

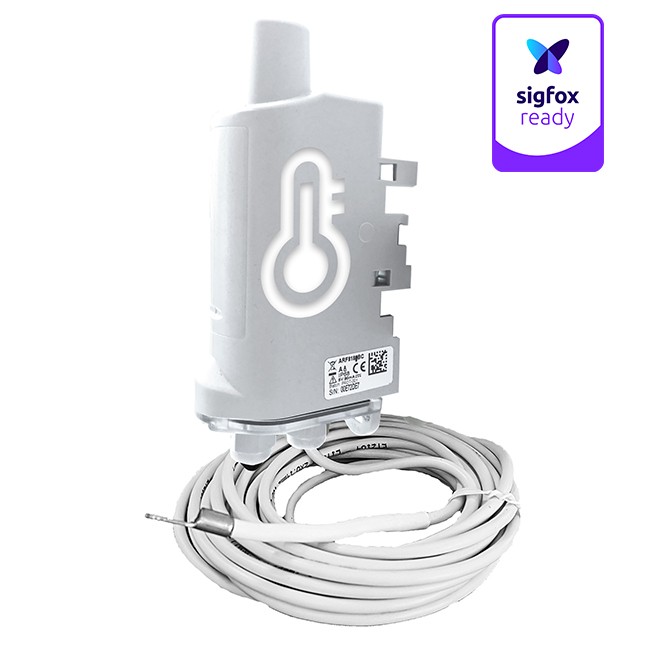

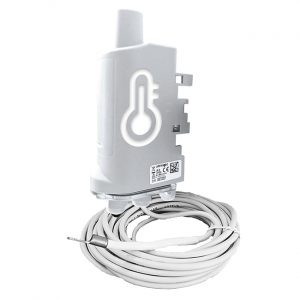

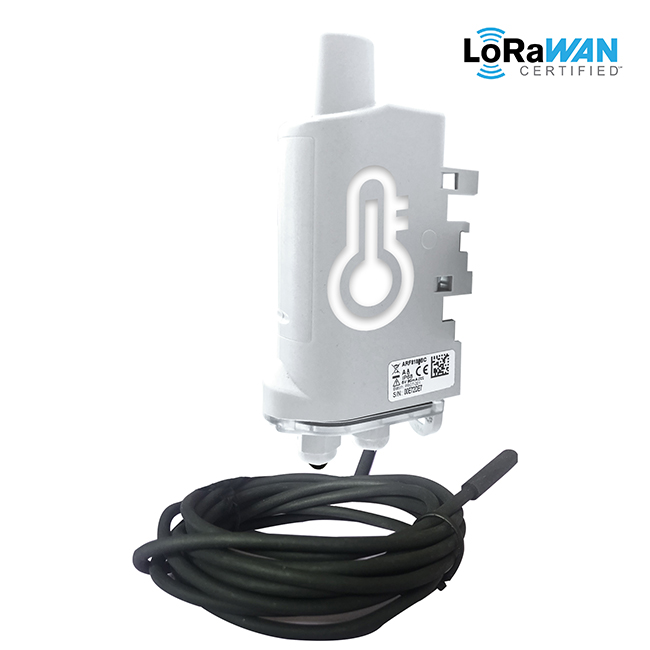

The TEMP is a ready-to-use connected sensor that allows measuring temperatures and transmitting them over a wireless network.

This product includes an ambient temperature probe and a remote contact temperature probe.

This sensor meets the needs of users who want to remotely monitor the internal and external temperatures of a storage room, cold room, or any space requiring a product resistant to varying environmental conditions.

Highlights of the IoT sensor

Ambient and remote temperature probes
Over 15 years of autonomy (according to version and configuration)
Data transmission modes: periodic and/or event-trigged
Local and remote configuration
Data logging for optimal autonomy
Available versions:
- LoRaWAN: EU863-870 / US902-928 / AU915-928 / AS923-1
- Sigfox: RC1 / RC2 / RC4
Other version: available with two external probes

SERVICES RELATED TO THE PRODUCT

FEATURES OF THE TEMPERATURE SENSOR

What actions are carried out by the IoT temperature sensor?

Alert

And/or, trigger an alarm if: high and/or low-temperature threshold(s) exceeded

Measure

Measure temperatures periodically
Identify any temperature losses

Description of the IoT temperature sensor

What are the technical characteristics of the connected sensor?

Features

Periodic transmission of temperature data (with or without logging of measured values) and/or when thresholds are exceeded (high and/or low).
Redundancy with configurable number of data repeats per frame
Configurable alarm repetition in the event of a persistent event
LoRaWAN Class C (with external power supply)
Configurable lifetime frame
Configuration:
- Local, via a USB-C port
- Remote, via the network, enabling periodicity, transmission modes and alarm thresholds to be set.
Product error, configuration error and low battery alerts

General specifications

Dimensions: 132 x 62 x 34 mm

Weight: 148g

Remote probe – Cable length: 2m

Casing: IP68
Integrated fastening system: DIN rail, tube, wall mount, collar

Battery type:
- replaceable battery (4000 mAh)
- external power supply (not supplied): input range 4.5 – 6.5V – Max current
  200mA
- USB power supply: supply voltage 5V nominal – Max current 200mA

Recommended operating conditions with battery supply:
- -25°C / +70°C
- 0 à 85% RH (non-condensing)

Decoding

Datasheet

Driver USB to download

Where does the sensor operate?

LoRaWAN EU863-870
Sigfox RC1

What is the sensor part number?

ARF8180ARA TEMP LoRaWAN® 863-870
ARF8181BCA TEMP Sigfox RC1

Certification:

Directive 2014/53/UE (RED)

What is the expected battery life of the sensor?

Under the following conditions: 1 scan and transmission/hour, 2 probes activated:

LoRaWAN EU863-870:

SF7: >15 years
SF12: 13.3 years

Sigfox RC1:

3 years

For further information, all the useful documents and tools relating to the TEMP IoT sensor:

User Guide TEMP ARF8180ARA LoRaWAN EU863-870

Technical Reference Manual TEMP ARF8180ARA LoRaWAN EU863-870

Release Note TEMP / TEMP2S ARF818xxR_ APP FW 1.1.0

User Guide TEMP ARF8181BCA Sigfox RC1

Technical Reference Manual TEMP ARF8181BCA Sigfox RC1

Release note TEMP ARF8181BCA Sigfox RC1 APP FW 2.1.0

Installation Guide LoRaWAN / Sigfox IP67-IP68

Previous versions: to find all the documentation related to previous versions of this product, click here.

Where does the sensor operate?

LoRaWAN US902-928
Sigfox RC2

What is the sensor part number?

ARF8180BRA TEMP LoRaWAN® US902-928
ARF8181DRA TEMP Sigfox RC2

Certifications:

US : FCC- Title 47 CFR Part 15
Canada : RSS-247 Issue 2

What is the expected battery life of the sensor?

Under the following conditions: 1 scan and transmission/hour, 2 probes activated:

LoRaWAN US902-928:

SF7: >15 years
SF12: >15 years

Sigfox RC2:

10 years

For further information, all the useful documents and tools relating to the TEMP IoT sensor:

User Guide TEMP ARF8180BR LoRaWAN US902-928

User Guide TEMP ARF8181DR Sigfox RC2

Technical Reference Manual TEMP

Installation Guide LoRaWAN / Sigfox IP67-IP68

Where does the sensor operate?

LoRaWAN AS923-1

What is the sensor part number?

ARF8180JRA TEMP LoRaWAN® AS923

Certification:

AS/NZS 4268

What is the expected battery life of the sensor?

Under the following conditions: 1 scan and transmission/hour, 2 probes activated:

LoRaWAN AS923:

SF7: >15 years
SF12: 13.3 years

For further information, all the useful documents and tools relating to the TEMP IoT sensor:

User Guide TEMP ARF8180JR LoRaWAN AS923

Technical Reference Manual TEMP

Installation Guide LoRaWAN / Sigfox IP67-IP68

Where does the sensor operate?

LoRaWAN AU915-928
Sigfox RC4

What is the sensor part number?

ARF8180IRA TEMP LoRaWAN® AU915-928
ARF8181KRA TEMP Sigfox RC4

Certification:

AS/NZS 4268

What is the expected battery life of the sensor?

Under the following conditions: 1 scan and transmission/hour, 2 probes activated:

LoRaWAN AU915-928:

SF7: >15 years
SF12: 8.4 years

Sigfox RC4:

10 years

For further information, all the useful documents and tools relating to the TEMP IoT sensor:

User Guide TEMP ARF8180IR LoRaWAN AU915-928

User Guide TEMP ARF8181KR Sigfox RC4

Technical Reference Manual TEMP

Installation Guide LoRaWAN / Sigfox IP67-IP68
