Analog: wired sensor interface
Analog: wired sensor interface
LoRaWAN / Sigfox sensor
On battery or external power supply, connect your 0-10 V or 4-20 mA sensors
ANALOG is a ready-to-use IoT sensor that transforms any type of 0-10 V or 4-20 mA sensor into a communicating sensor.
This connected sensor meets the needs of users who want to remotely monitor data of any kind (power consumption, temperature, pressure, humidity, CO², speed, brightness, opening, level, etc.) from a sensor or piece of equipment.
HIGHLIGHTS OF THE IOT SENSOR
- 2 versions available:
- replaceable internal battery
- external power supply
- 2 analog inputs independently configurable as 0-10 V or 4-20 mA
- 2 digital inputs associated with analog inputs
- Data transmission modes: periodic and/or event-driven
- Local or remote configuration
- Compatible with KARE

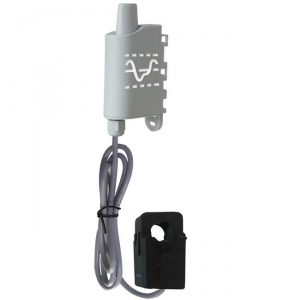

- Other version available: Current sensor
SERVICES RELATED TO THE PRODUCT
FEATURES OF THE ANALOG IoT SENSOR
What actions are carried out by the connected sensor?

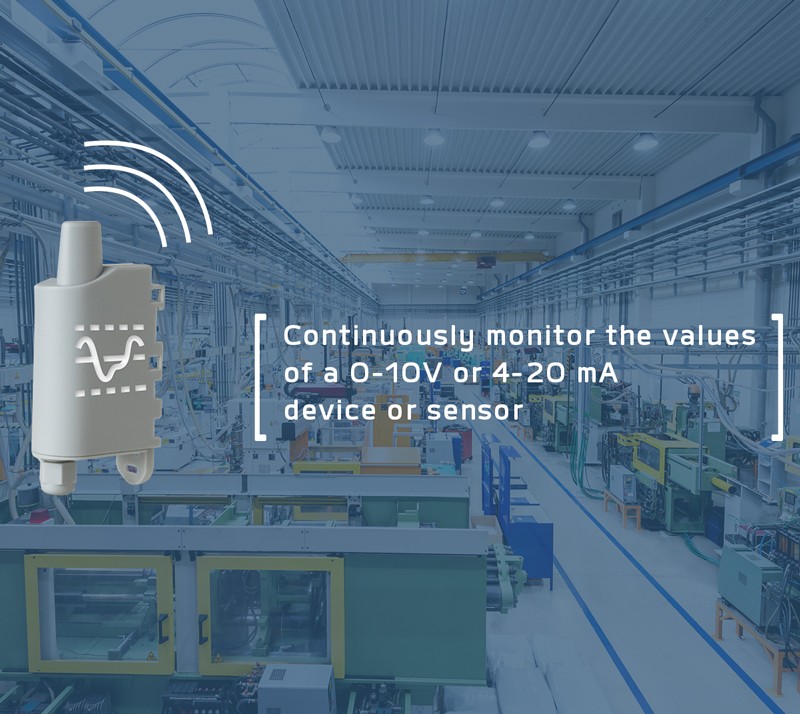

Measure
Continuously monitor the values
of 0-10V or 4-20 mA equipment
or sensors (clamp ammeter,
temperature, rain gauge, pressure,
humidity, speed, etc.).
Alert
AND/OR Trigger an alarm if:
- high and/or low threshold(s) exceeded
- event on one of the 2 dry contact inputs
Description
What are the technical characteristics of the connected sensor?
Technical specifications
- 2 versions available :
- replaceable internal battery (ANALOG)
- external power supply (ANALOG PWR)
- 2 analog inputs independently configurable as 0-10V or 4-20mA
- 2 digital inputs associated with analog inputs
- Data transmission modes: periodic and/or event-driven
- Product error, configuration error and low battery alerts
- Configuration:
- Local, via a USB port
- Remote, via the network,
General specifications
- Weight:
- 70 g (battery included)
- 49 g (powered version)
- Dimensions: 105 x 50 x 27 mm
- Enclosure: IP67, EMERGE™ PC 8731HH grey resin (casing), EMERGE™ PC 8430-15 transparent
resin (sole) - Mounting: DIN Rail, Tube, Wall, Collar
- Power supply:
- Replaceable battery (2600 mAh capacity)
- External power supply on 2-pin terminal block: input range 6-24V – max. current 90 mA
- Recommended operating conditions:
- 25°C / +70°C for battery-powered version
- -25°C / +40°C for external power supply version
- 0 to 85% RH (non-condensing)
Decoding
Datasheet
Driver USB to dowload
Where does the sensor operate?
- LoRaWAN EU863-870
What is the sensor part number?
- ARF8190BA ANALOG LoRaWAN® EU863-870
- ARF8200AA ANALOG PWR LoRaWAN® EU863-870
Features
- Minimum scan period of 30 seconds with a sampling period of 30 sec.
- Data logging (up to 24 samples per frame)
- Configurable lifetime frame
- Data timestamp: EPOCH 2013 format (function can be activated)
- Network test on start-up: performed automatically when the product starts up (via LEDs)
- Customisable join phase: can be customised (number of attempts, time between attempts), remote join
re-launch, etc. - Data accessibility: redundancy
Certification
- Directive 2014/53/UE (RED)
What is the expected battery life of the sensor?
Under the following conditions: 2 inputs activated and configured as 0-10V
For 1 scan every 5 minutes and 1 transmission every 30 minutes:
- SF7 >15 years
- SF12 = 5 years
For 1 scan every 10 minutes and 1 transmission every 60 minutes:
- SF7 >15 years
- SF12 = 9.1 years
For further information, all the useful documents and tools relating to the LoraWAN ANALOG et ANALOG PWR sensors :
Previous versions: to find all the documentation related to previous versions of this product, click here.
Where does the sensor operate?
- Sigfox RC1
What is the sensor part number?
- ARF8191BA ANALOG Sigfox RC1
- ARF8201AA ANALOG PWR Sigfox RC1
Certification
- Directive 2014/53/UE (RED)
What is the expected battery life of the sensor?
For 1 frame every 2 hours (12 frames per day): 4.2 years
For further information, all the useful documents and tools relating to the Sigfox ANALOG et ANALOG PWR sensors :
Previous versions: to find all the documentation related to previous versions of this product, click here.
